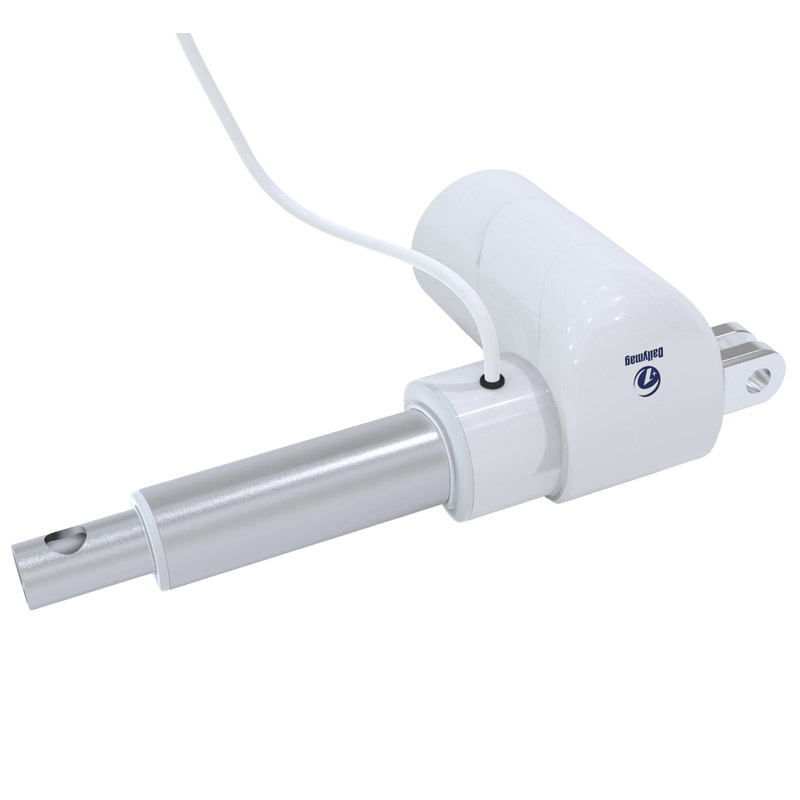

Block-Prevent Linear Actuators are built-in clutch. When the drive pole retract,  the clutch will loose automatically if meeting resistance to prevent hand being squeezed.

Item No.: BP2000     2000N          Item No.: BP4000     4000N

Item No.: BP6000     6000N          Item No.: BP8000     8000N

Specification of Block-Prevent Series Linear actuators:

◇ Max. Thrust: 2000N, 4000N, 6000N, 8000N

◇ Voltage:24VDC or 12VDC, Permanent Magnet Motor Drive

◇ Standard stroke: 50 ~ 350 mm, special stroke are

    available according to customer’ requirement.

◇ When the drive pole retract,  the clutch will loose automatically if meeting

     resistance to prevent hand being squeezed.

◇ Duty cycle:10%

◇ Ambient temperature -5°C (23F) to +40°C (104F)

◇ Standard protection class :IP 51

◇ Built-in integral limit switch, not adjustable after leaving factory

◇ High strength plastic housing

◇ Zinc alloy back fixture

◇ Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.

◇ Overload protection

◇ CE Certificated
