Item No.: MW-C

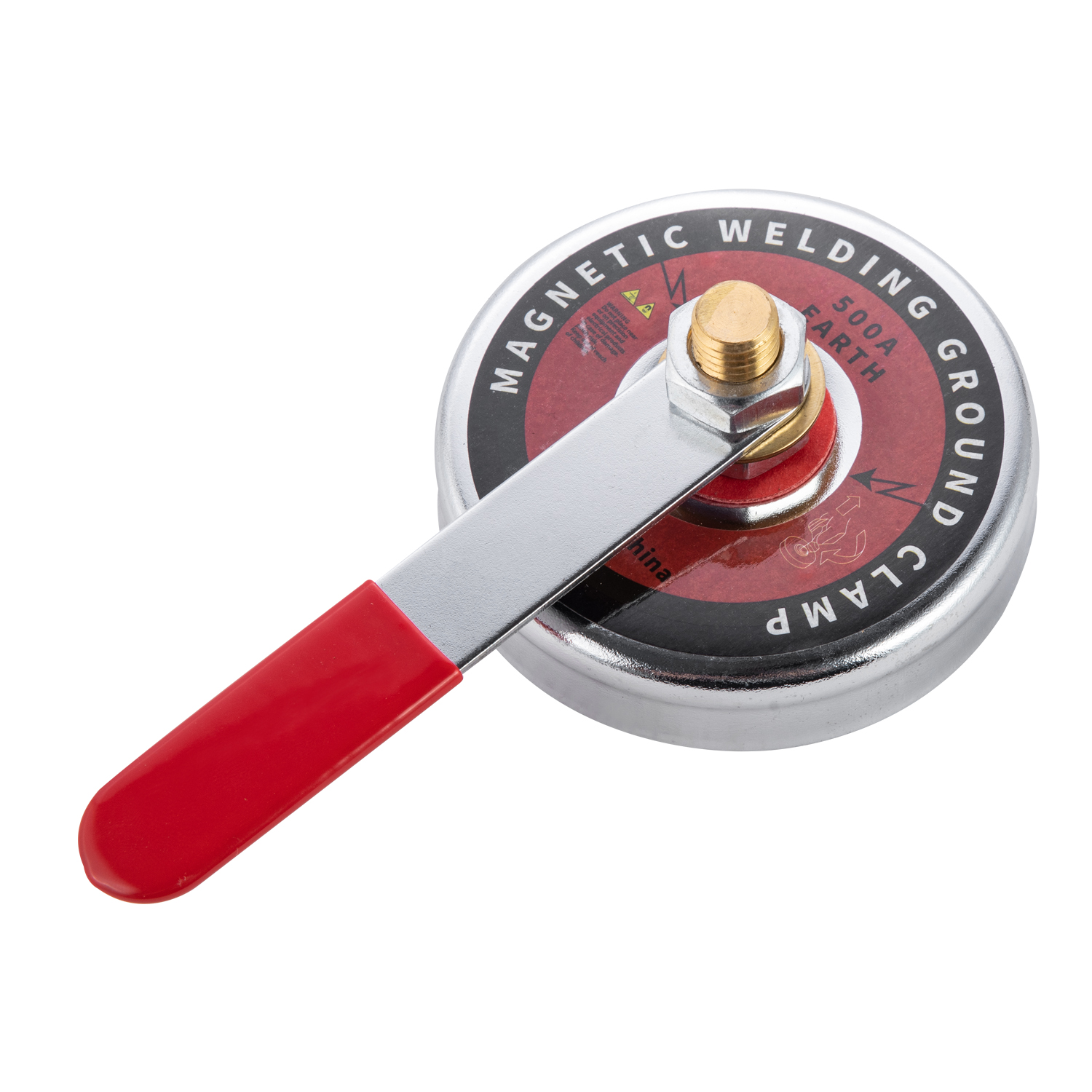

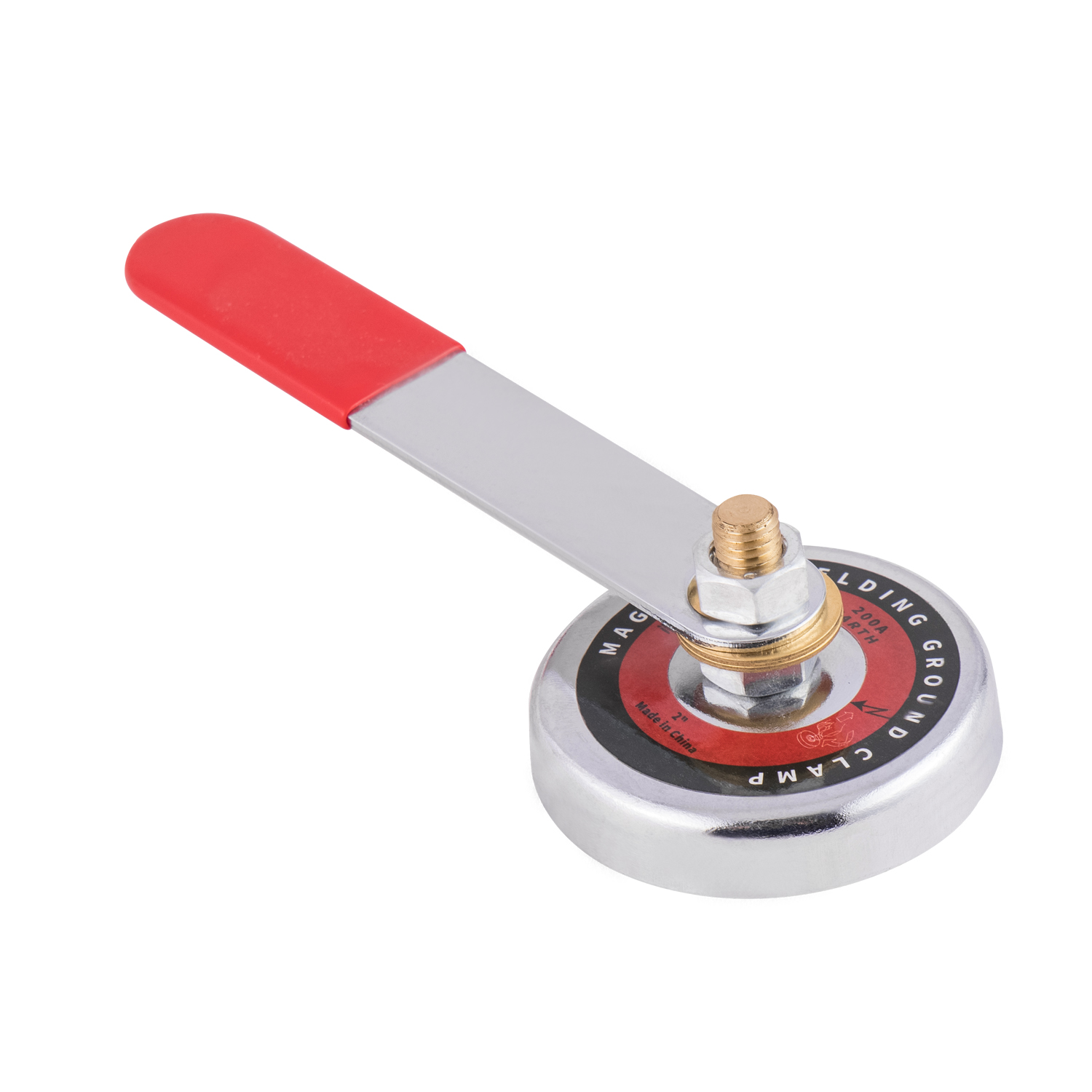

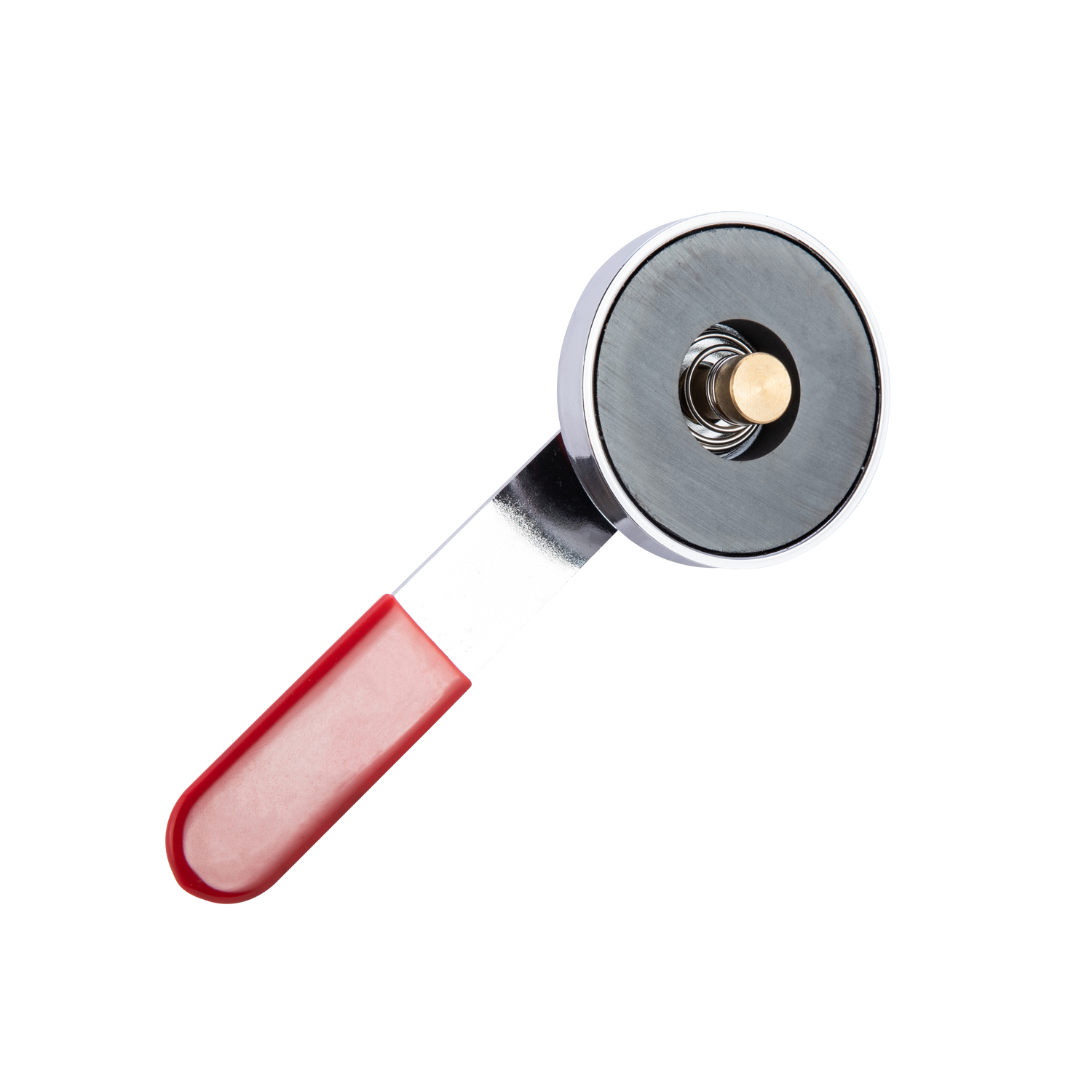

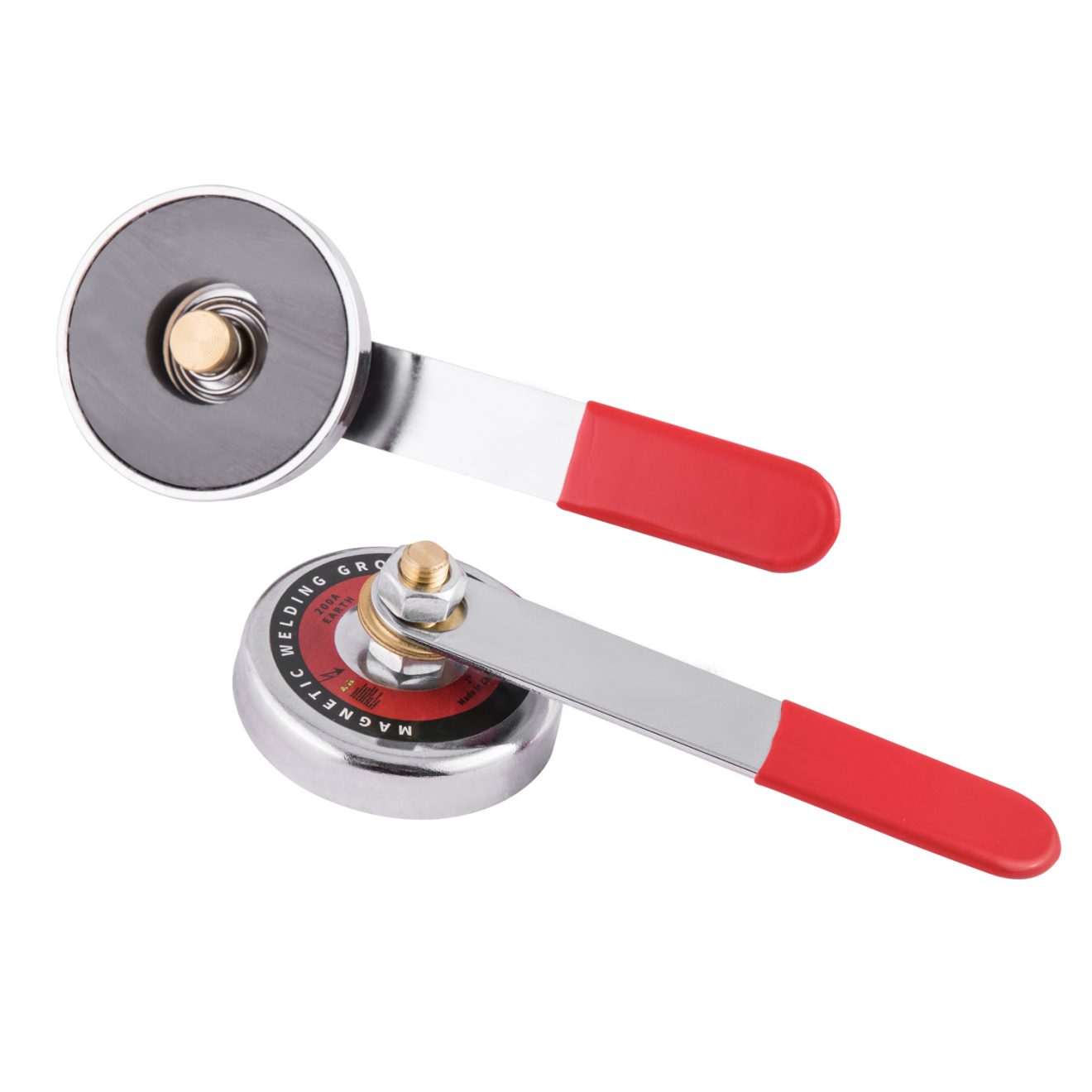

Magnetic Welding Ground Clamp
Magnetic Welding Ground Clamp is a great tool to ground your welding work safe with ease
What is Magnetic Welding Ground Clamp?
Magnetic Welding Ground Clamp is a great tool to ground your welding work safe with ease.
We know that the electric welding machine must be grounded in real time when it is working. Electric welding machine operation must ensure in safe production, so there must prevent electric welding machine leakage to avoid electric shock accidents.
If the welding machine is not well grounded, there will be a strong electricity current during working, and leakage will occur when the insulation is not good. If the electric welding machine touches the human body and generates a current of more than 50 mA, it will be life-threatening. Therefore, the welding machine must be grounded during operation, and the equipment current will always flow to the ground. Even if it is in contact with people, it will not pass through the human body, and there will be no electric shock accidents.
Before the magnetic welding ground clamp was invented, the grounding wire of the electric welding machine is wrapped around the welding piece with tape, or it is connected to an ordinary metal clamp and clamped on the welding piece, or a heavy object such as a stone is pressed on the welding piece. These methods are risky and threats to electric welder's safety.
The magnetic electric welding ground clamp can ensure that the welding machine is always grounded, and it is quite reliable. It is equipped with a strong permanent magnetic magnet base, which can reach 15-40kg of magnetic attraction to the iron plate. When using, fix the grounding wire of the electric welding machine with a bolt on the back of the clamp, and then hold the handle to firmly attract the magnetic electric welding ground clamp to the vacant flat surface of the electric weldment, and then you can perform electric welding operations with peace of mind, even in strong winds or There is no need to worry about the vibrating environment. It is much more reliable than the traditional grounding method. The clip is equipped with a high-purity copper rod to contact the welding part, which has good electrical conductivity.
How long can the Magnetic Welding Ground Clamp be used?
Magnetic Welding Ground Clamp is permanent magnetic, as long as the copper rod and other parts are properly maintained, it can be used for at least 10 years, even several times longer than your electric welding machine, and there is no maintenance cost.
Dailymag currently produce 2 sizes of Magnetic Welding Ground Clamp:
Item No: | Magnet Base Dimension | Magnetig Capacity | Maximum Rated Current |
MW-C86 | D86x18mm | 40kg | 500A |
MW-C55 | D55x12mm | 15kg | 200A |
